Guardian

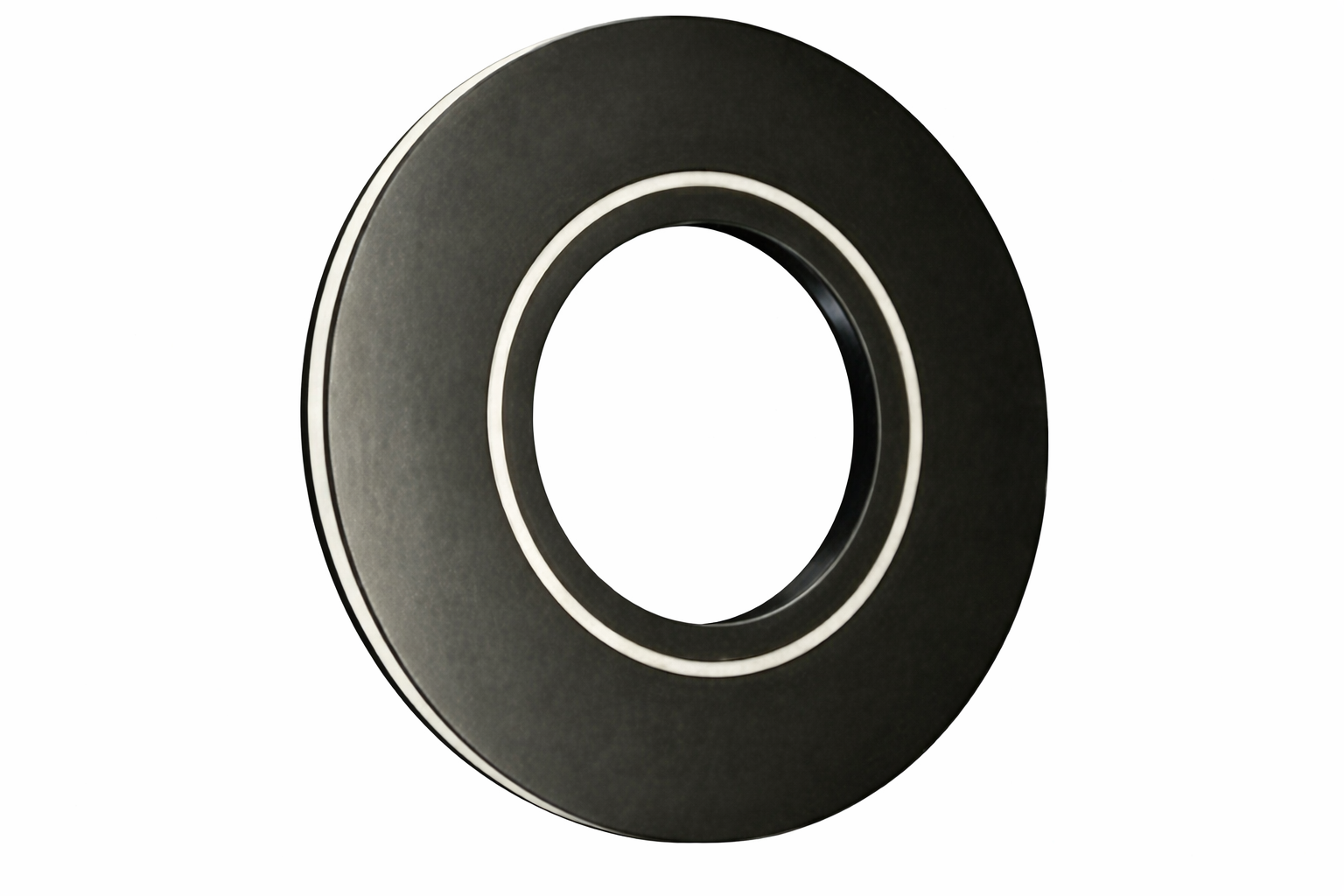

The Guardian is a high-performance flange isolation gasket engineered for the most demanding critical-service applications. It delivers absolute electrical isolation and unmatched long-term corrosion control in aggressive hydrocarbon environments—protecting your assets where failure isn't an option.

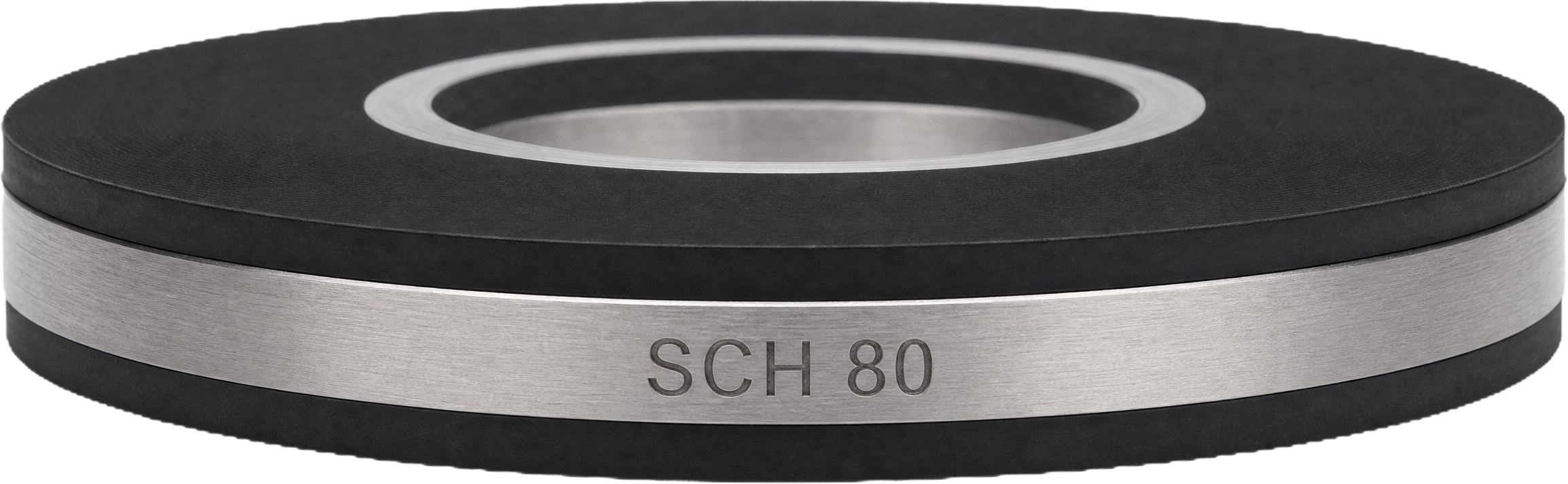

Built with a 316/316L stainless steel inner core laminated on both sides with high-strength NEMA-grade G-10 or G-11 glass-reinforced epoxy (GRE), the Guardian resists deformation under extreme loads while ensuring superior dielectric strength and reliability.

Ideal for pipelines handling water, wastewater, natural gas, crude oil, H₂S, CO₂, refined hydrocarbons, LNG, and produced water at continuous temperatures up to 392°F (200°C).

Key Features & Benefits

  • Superior Construction: 316L stainless steel core with GRE laminations for exceptional compressive strength and creep resistance. Multiple core options available dependent on media and application.

  • Customizable Seals: PTFE, Viton, or application-specific elastomer O-rings

  • Full Electrical Isolation: Prevents galvanic corrosion between dissimilar flanges (>800 V/mil dielectric strength)

  • Extreme Durability: Handles vibration, thermal cycling, pressure fluctuations, and high bolt loads

  • Leak-Proof Performance: Minimizes fugitive emissions and eliminates fluid entrapment in RTJ flanges

  • Broad Compatibility: Flat Face (FF), Raised Face (RF), and Ring Type Joint (RTJ) flanges; Type E and Type F configurations

  • Wide Range: Sizes ½″ to 48″; Pressure ratings ANSI 150–2500 lb, API 6A/6B up to 15,000 psi, and more (matches ANSI, ASME, API, MSS, BS, DIN, AS standards)

Proven Worldwide Performance

Field-tested in upstream, midstream, and downstream operations globally, the Guardian stands guard under extreme pressure, temperature cycling, and mechanical stress—reducing maintenance, downtime, and risks.

Defend your pipelines with the unbreakable Guardian. Contact us today for custom solutions, technical specs, or a quote!
