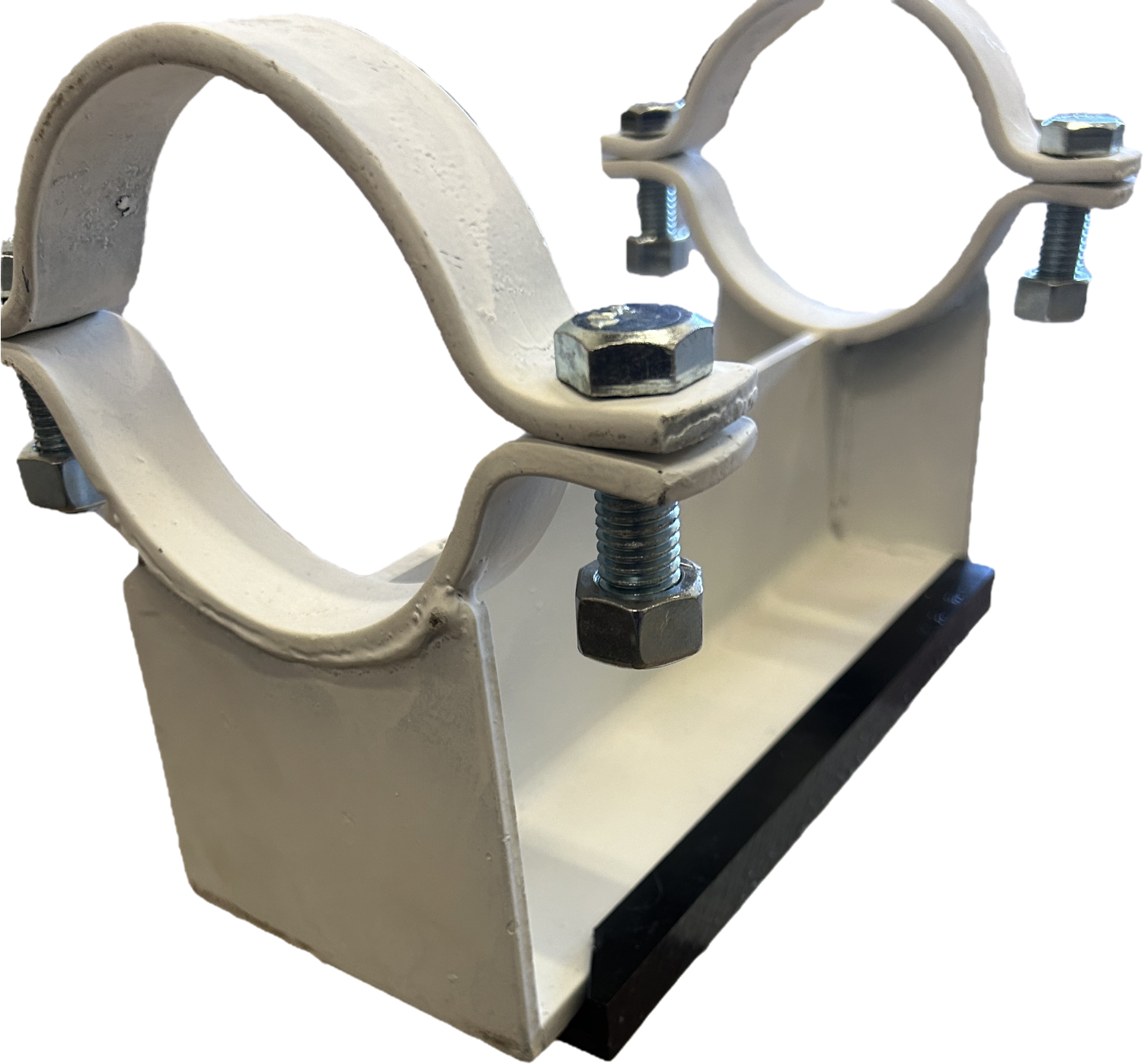

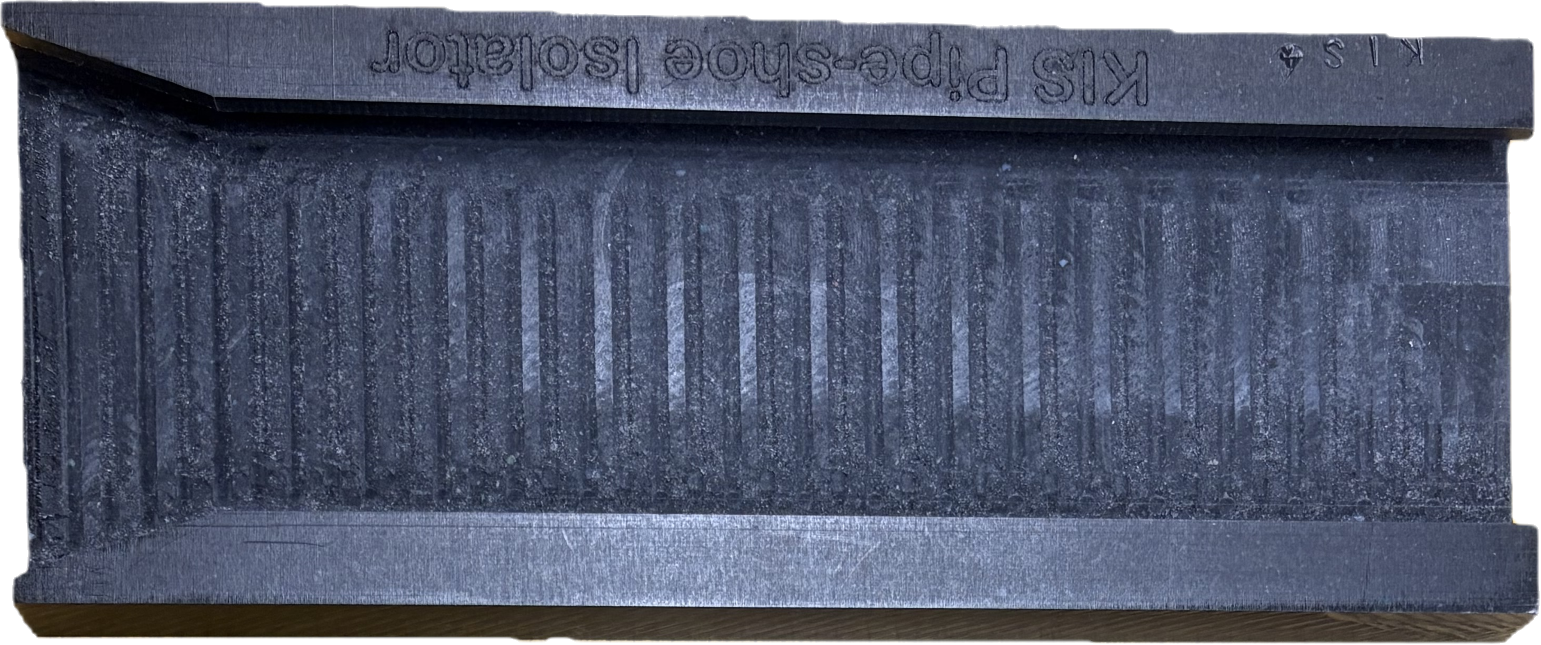

Designed for isolation of standard and re-enforced pipe shoes as a one piece
Size Range: 4” , 5 1/4”, 6 1/4”, 8 1/4” to fit pipe shoe base plate width
Larger sizes are customizable and made upon orders
Tapered channel allows easy installation with a hammer
Temp range –51 to + 82 deg C
UV stability, minimal moisture absorption
Exhibit excellent abrasion and chemical resistance
Low coefficient of friction with self lubricating capabilities
Out wears carbon steel 10-1
Outstanding impact load and dielectric strength with tensile strength at yield 17MPa and break at 40MPa
